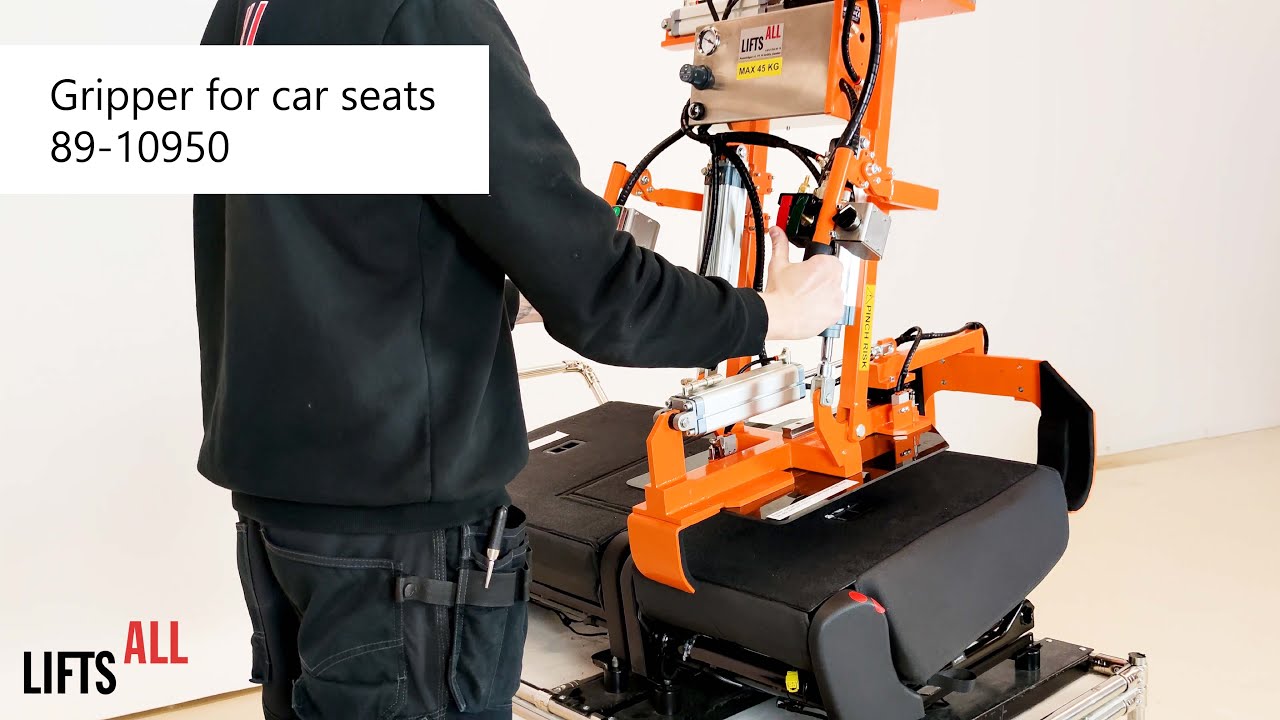

Gripper for car seats 89-10950

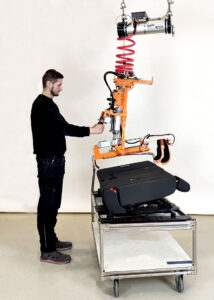

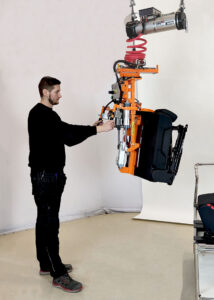

This is our mechanical gripper for car seats. With this gripper, the operator easily lift the car seat from a cart and place it on a rack or conveyer belt. It is also possible to tilt the seat horizontally or vertically. The maximum lifting capacity for this lifting tool is 45 kg.

Car seat gripper for the automotive industry

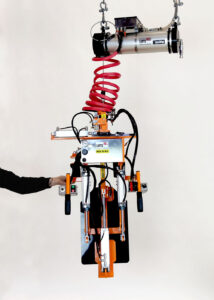

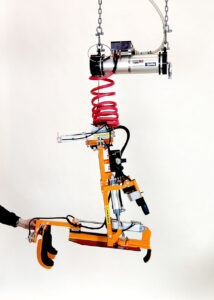

The gripper clasps the car seat from top and bottom. The two padded metal ´hands´ grip around the headrest and at the base of the seat. The Green Eye (a pressure indicator) lights up and indicates that the seat is securely held by the gripper. If the Green Eye does not light up, the tool will not be able to lift the seat. Lifting activates by pressing the up and down levers on the Pro-Speed-Handle. Rising and descending speed depends on how hard you press the levers. After lowering the seat down at the desired location, disengage the seat from the tool with the red button on the left handlebar.

The gripper is versatile, and you can use it to lift both single and double seats. When lifting alternately between both types of seats, use the black button on the right handlebar to switch the gripper from lifting one type to the other.

Customized lifting solutions

We design the lifting tool to be optimal for what you need to lift, and for the environment in which you work. It is possible to adjust and adapt the tool for your maximum load, rotation and tilting requirements. We make sure the lifting solution suit your work momentum according to your specifications. Another thing that we can adjust according to your liking is the color of the tool. Usually, our lifting tools come in red, but in this example our customer wanted it in orange. Read more about our customizedlifting tools here.
