H-Frames

Height (mm): 101, 103, 108, 88
Weight (kg): 1.2, 1.5, 2
Maximum capacity (kg): 36, 60, 76
Maximum capacity airtight (kg): 100, 36, 50, 76
Maximum capacity porous (kg): 0, 25, 36, 50, 60, 86
Product sheet (PDF)
Product inquiry

Product inquiry

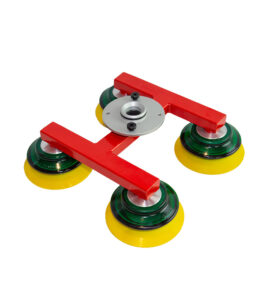

H-frames are ideal for lifting porous boxes, packages and cartons. Because the frame is shaped like an H, the cups grip the four corners of the package, avoiding the taped joint where vacuum cups find it more difficult to attach.

H-frames are also adapted to lifting dense materials, such as plastic boxes or sheet metal parts. The application uses the same vacuum cups for both porous and dense materials. By adding a cell rubber gasket, the vacuum cups get an even better grip when gripping over straps.

These applications are intended for environments with a temperature between 10-50 °C.

Filter

Maximum active values:
  • Height (mm): 101, 103, 108, 88
  • Weight (kg): 1.2, 1.5, 2
  • Maximum capacity (kg): 36, 60, 76
  • Maximum capacity airtight Maximum capacity (kg): 100, 36, 50, 76
  • Maximum capacity (kg)porous (kg): 0, 25, 36, 50, 60, 86
  • Type of lifting object: Cardboard box
  • Gripping technique: Vacuum
  • Number of cups: 4, 6
  • CC cups (mm): 175
  • Outer edge cups (mm): 253, 265, 289, 390
  • Copper diameter (mm): 113.7, 114, 77.5, 88.7
  • Configuration height (mm): -78, -91, -93, -98
