Vacuum Pads

Height (mm): 136, 85
Weight (kg): 1.8, 2, 2.5, 3, 4
Maximum capacity (kg): 27, 30, 50, 56
Maximum capacity porous (kg): 22, 40, 50
Maximum capacity airtight (kg): 27, 50, 56, 58
Product sheet (PDF)
Product inquiry

Product inquiry

Vacuum pads – flexible lifting solutions for many materials

The vacuum pad is an application that can be used for lifting both airtight and not airtight materials. If you lift airtight materials, it has a capacity of 50 kg. If the load you are lifting is not airtight, the maximum capacity is 30 kg. The vacuum pad is the application we recommend for those who want to be able to lift multiple types of objects with the same lifting tool, such as boxes, metal plates with holes, or other loads that are not completely smooth. The application lifts the load gently and is therefore perfect for loads that need to be handled carefully.

What can the vacuum pad lift?

Sometimes, a regular vacuum suction cup can have difficulty gripping because the vacuum pressure is too low. In these cases, the vacuum pad is ideal. It can for example lift:

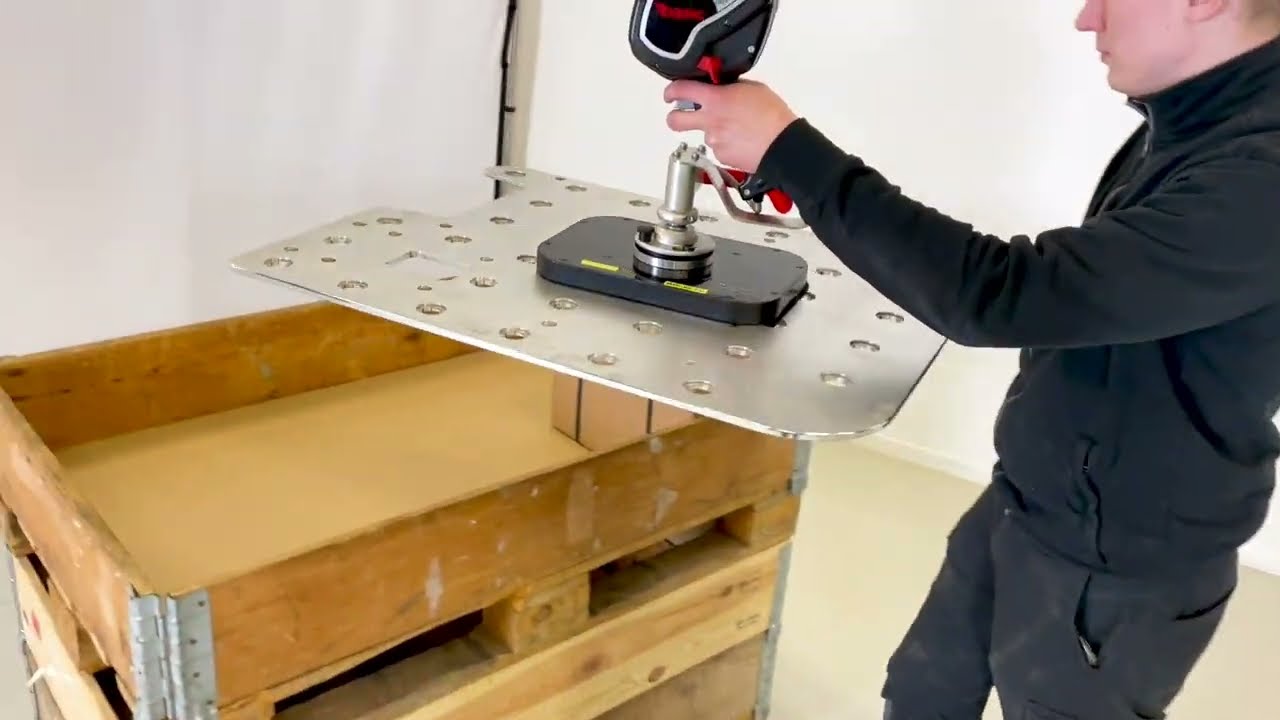

  • Perforated or uneven metal sheets

  • Rough wooden boards

  • Carton boxes and packages

  • Steel or aluminum sheets with punched holes

  • Other materials that are not 100% airtight

Combine with our lifting systems

Our vacuum pads are available in several versions and can easily be clicked onto our lifting tools Basic and Classic B-M. By changing the application, you get a versatile lifting tool that adapts to different types of loads and work.

Filter

Maximum active values:
  • Height (mm): 136, 85
  • Weight (kg): 1.8, 2, 2.5, 3, 4
  • Maximum capacity (kg): 27, 30, 50, 56
  • Maximum capacity (kg)porous (kg): 22, 40, 50
  • Maximum capacity airtight Maximum capacity (kg): 27, 50, 56, 58
  • Gripping technique: Vacuum
  • Length (mm): 140, 180, 300, 420
  • Configuration height (mm): -126, -75
  • Function: Self-closing butterfly valves grip vertical and horizontal grip, Self-closing ball valves grip horizontal grip
